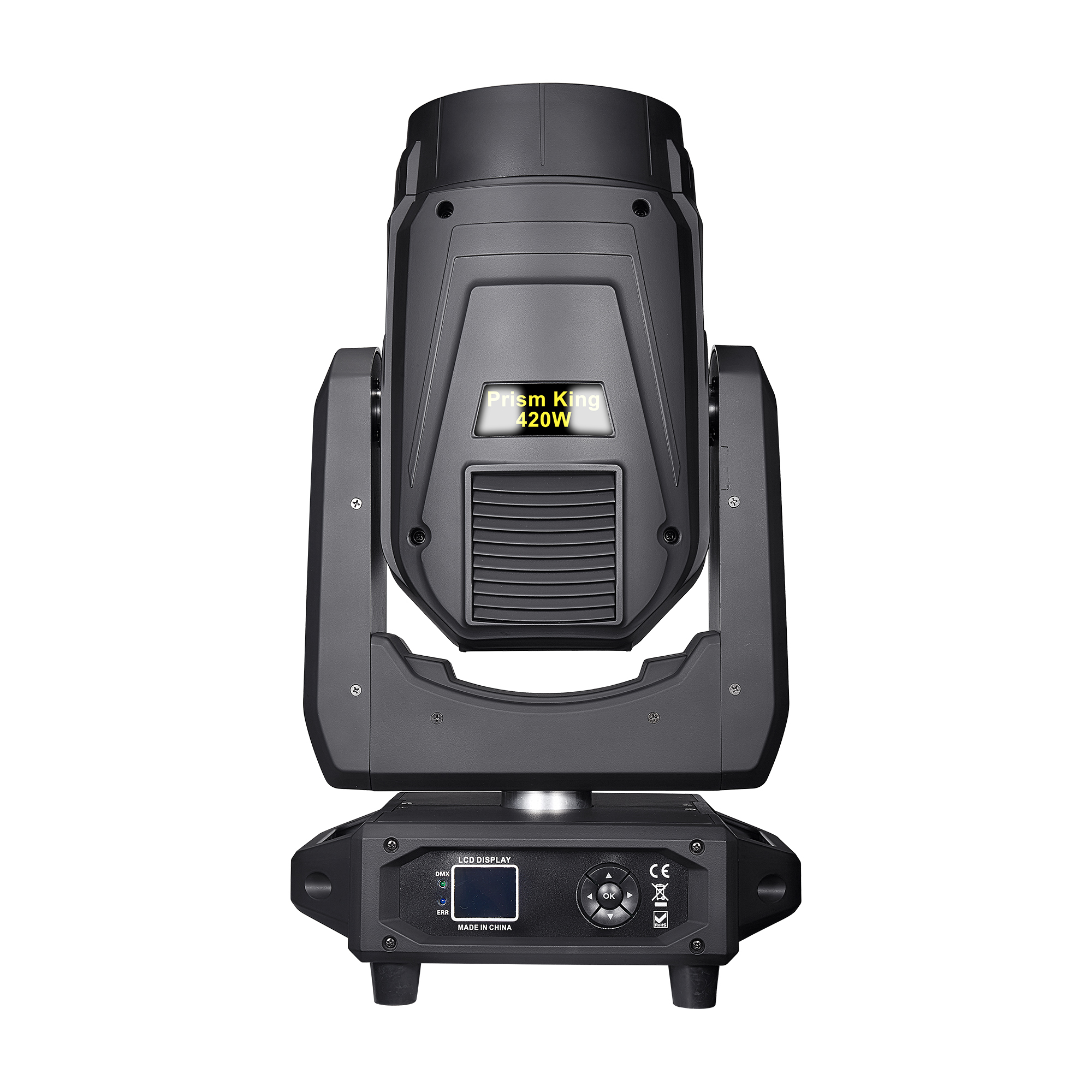

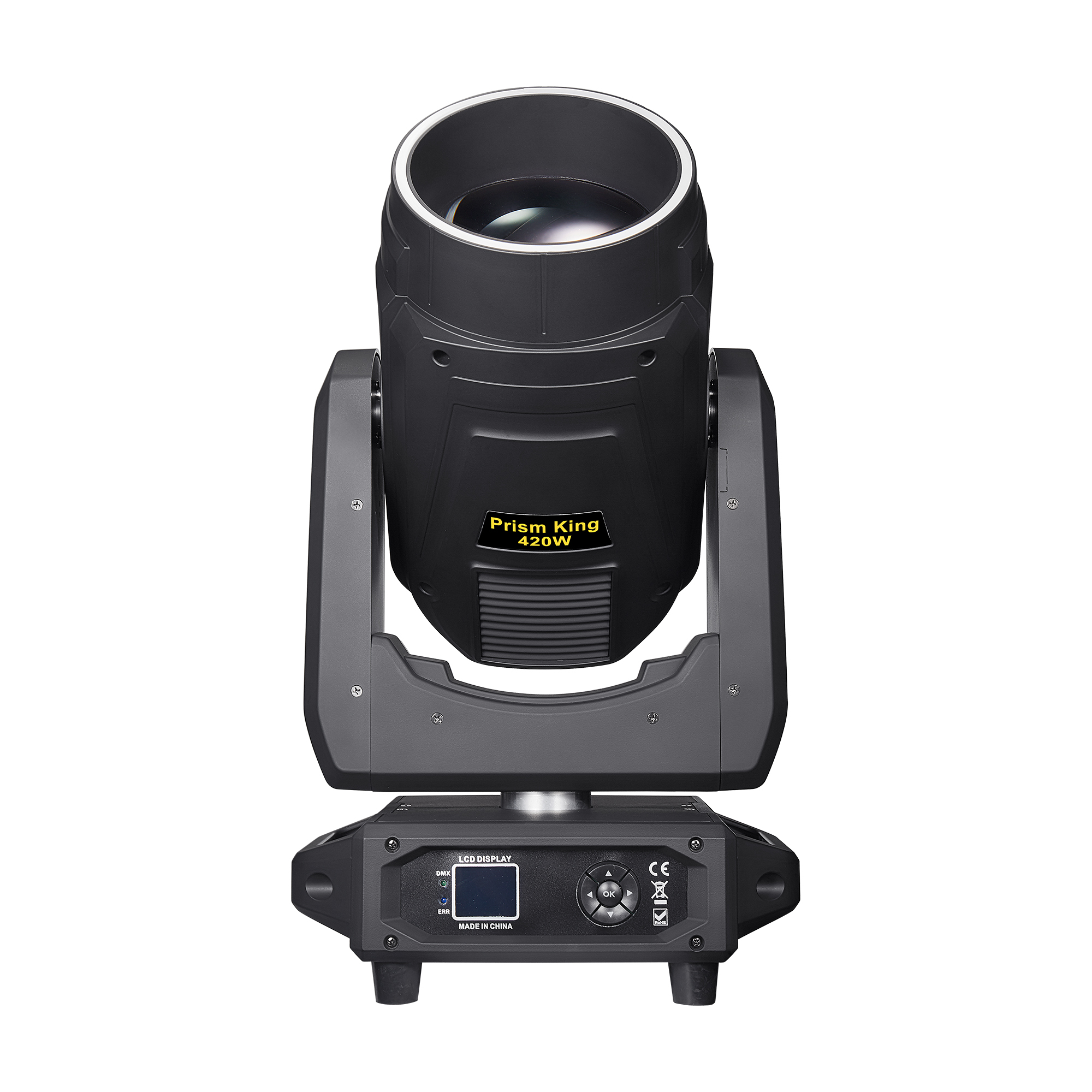

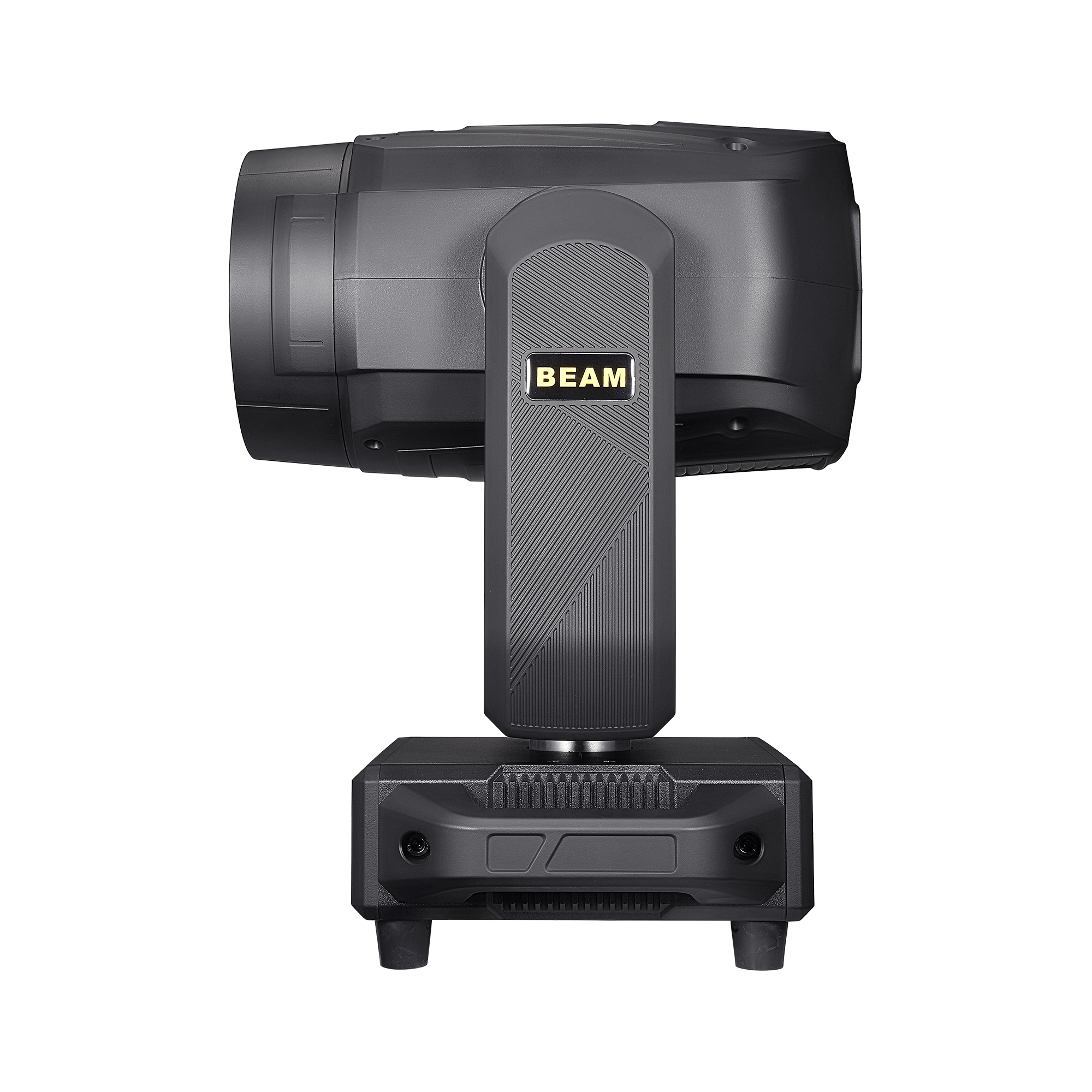

Dense/420W Prism King Beam Moving Head
Dense/420W Prism King Beam Moving Head
This fixture has total 4 kinds of prism with rotation in both directions at variable speed to make 7 kinds of Prism effect.Constructed from Flame-retardant ABS material,Matte spraying,enables a lightweight body.Super big 172mm Lens for lighting.Weighing 16kg easy to transpot.Supports free rotation across multiple angles.Diverse effects with led aperture on top.Suitable for party,dj,stage applications.
- Use a 420W 22R bulbs.
- Fixed color wheel with 13 dichroic colors
- 1 fixed gobo wheel with 10 gobos 4 glass gobos

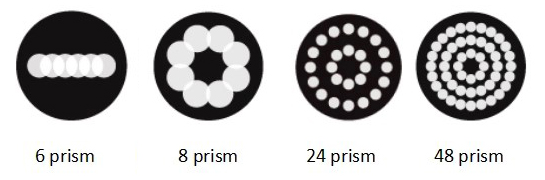

- 4 Prisms work together
- Channel:18CH
- G.W:16kg
- Packing:63*46*43cm
Product Description
420W Prism King is a Beam Moving Head.Uses Ushio 420watts 22R bulbs and 172mm Lens,so bright for Bar,Disco,Event.Total 4 prisms and 7 kinds prism effect.It uses three Phase Motor,fast and quiet.There are 14 Colors and 14 Gobos.It has Rainbow Effect for fairyland.
You can check its application cases in our Projects section:https://showtimelite.com/120w-laser-beam-moving-head-test/
We support OEM & ODM services, and welcome small-batch customization. Available custom options include logo printing on lamp housings, logo display on screens, customized glass patterns, replacement of prisms, and logo printing on flight cases.
This is our Tiktok would show our produce,please follow us:https://www.tiktok.com/@showtimestagelight/
This is our Ins,You also Can follow us ,we would update some new goods on that:https://www.instagram.com/mayshowtimestagelight?igsh=MXF0czNiOWRldTdraw%3D%3D
This is our Facebook,please follow us,we would update some new goods on that:https://www.facebook.com/profile.php?id=100092310344983
Show Time Stage Light
420W Prism King Beam moving head
Channels Table
| CH1: Color Wheel | CH2: Strobe | CH3: Dimmer | CH4: Gobo Wheel | CH5: Prism insert | CH6: Prism Wheel1 Rot |
| CH7: Prism Wheel2 Rot | CH8: Rainbow/Frost | CH9: Focus | CH10: Pan | CH11: Pan Fine | CH12: Tilt |
| CH13: Tilt Fine | CH14: Marco Function | CH15: Reset | CH16: Lamp Control | CH17: Led Aperture | CH18: Led Ape Speed |
Optic
- Light Source:Ushio 380W 20R Sharp Bulbs
- Lifetime:5000H
- Color Temperature:7800K
- Lens Diameter:168mm
- Beam Angle:1.5degree
- Led Aperture:5050 SMD RGB 3 IN 1
Electrical And Control
- Claypaky Button
- Control:DMX 512/RDM/Artnet
- DMX Channel:18Ch
- Input Voltage:AC100-240V/50-60Hz
- Power Supply:500Watts
- Power Connections:White Blue Powercon In/out
- DMX Connections:3 Pin Xlr In/out
Dynamic Effect
- Dimmer:0-100% smooth dimming
- Strobe:0-30t/s
- Focus:Electric Focus System
- Pan/Tilt:540/270degree
- P/T:16 Bit Scanning
Body and Package
- Flame retardant ABS material IP33 body
- Carton Package:53*39*42cm 14kg
- 2 IN 1 Flycase Package:59*47*75cm 47kg

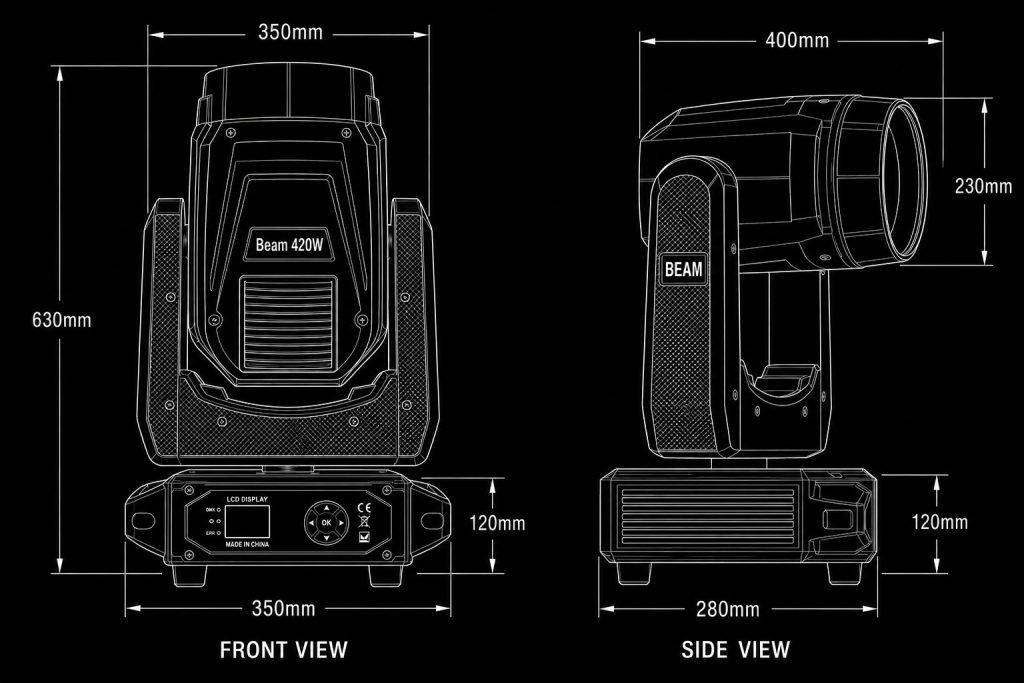

- Fixture Size:32*25*52cm 12kg

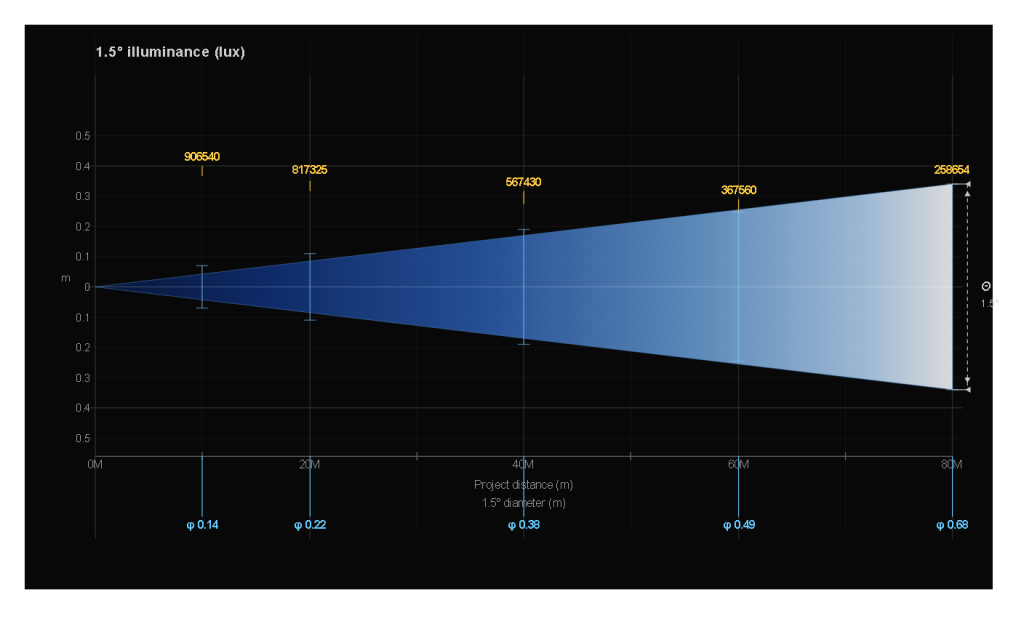

Lumen Specifications Table

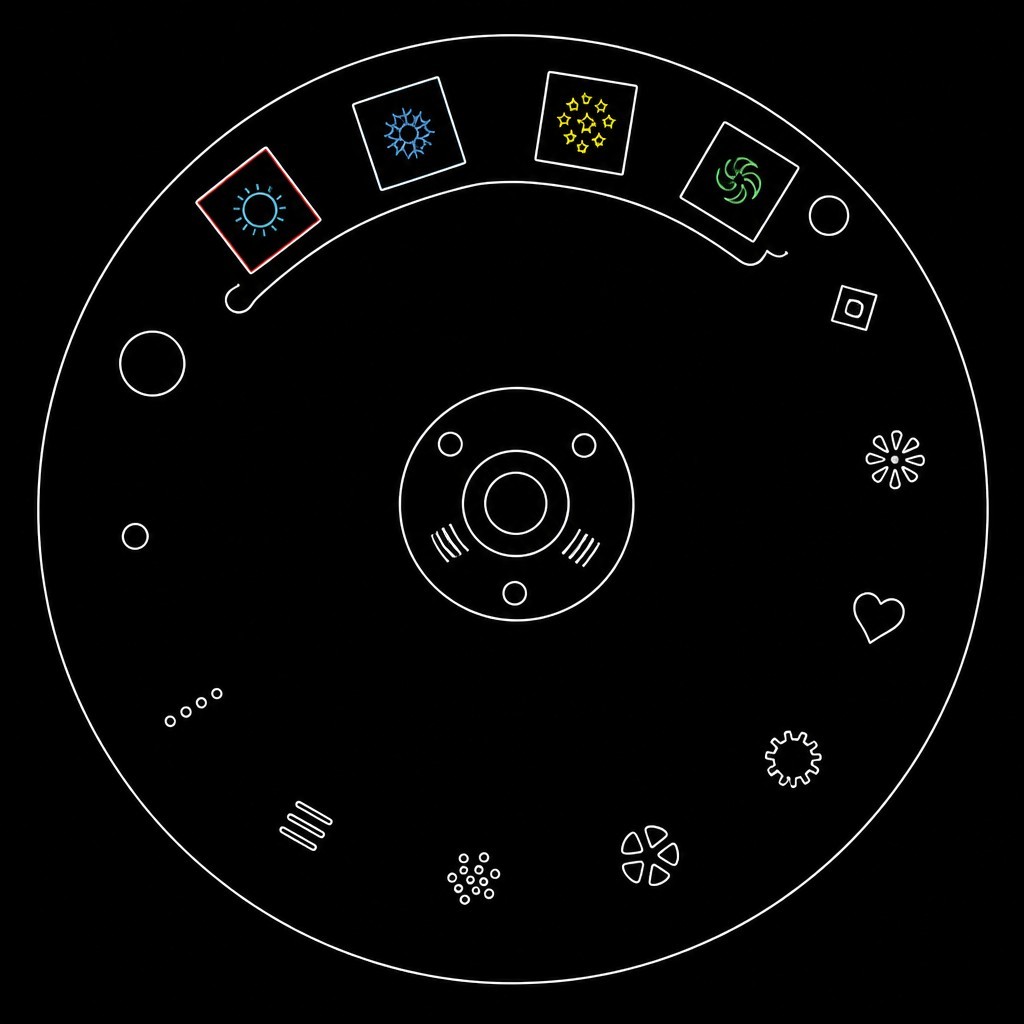

Color Wheel+Gobo Wheel+Prism(Optional）
Light Effect
Frequently Asked Questions
Where are you located?
We are located at #37 Gongye Dadao, Huadu District, Guangzhou. Just 25 minutes' drive to Baiyun Airport.
How is the product quality?
We use high-strength steel and flame-retardant ABS materials. Continuous service life exceeds 5,000 hours.
How can I purchase your products?
Please contact our staff, and they will provide detailed procedures and shipping methods (including express, by air, by sea, by truck, by train).
What if the product doesn't work properly?
We provide 2 years free and Lifetime maintenance after-sales support, including video call troubleshooting and free replacement parts for any damaged components.
