Allerno/Mini Beam 230 Moving Head

Mini Beam 230 Moving Head is a classical 7r beam moving light.Mini 230 Beam Light — Compact body, professional beam performance. Features a 230W light source and an ultra-narrow ~2° beam angle, delivering a sharp, high-penetration beam; offers rapid 540°/270° scanning; includes 13 colors, 8 gobos, 8/16-facet prisms, frost, and dimming/strobe functions for versatile effects; supports 16/20-channel DMX control. Its compact, lightweight design saves on trussing and shipping costs; features low power consumption and quiet cooling, making it durable enough for rigorous rental use. Ideal for bars, KTVs, small-to-medium stages, and touring productions.

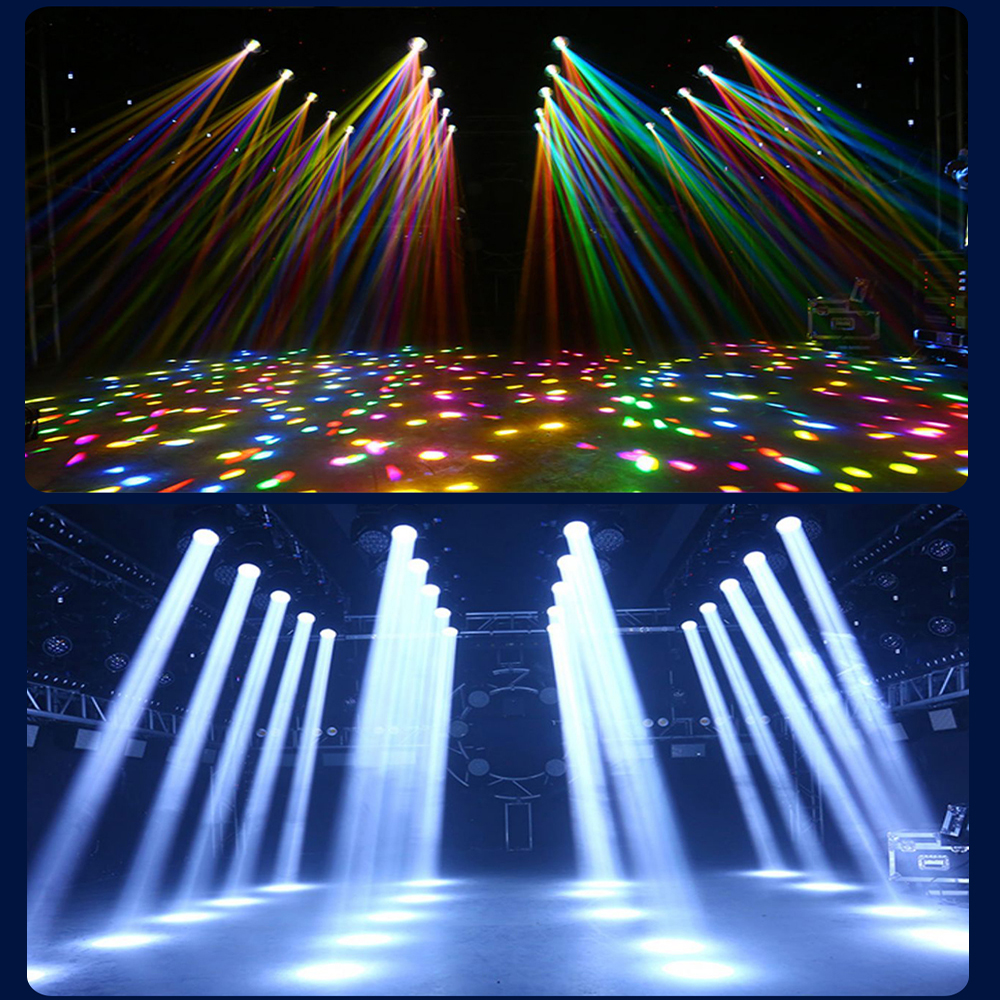

  • Powerful 230W light source with a super-narrow beam angle (approx. 2°), producing crisp, intense beams that cut through haze for stunning aerial effects
  • Fast, precise movement with 540° pan and 270° tilt, easily keeping pace with fast music and quick scene changes

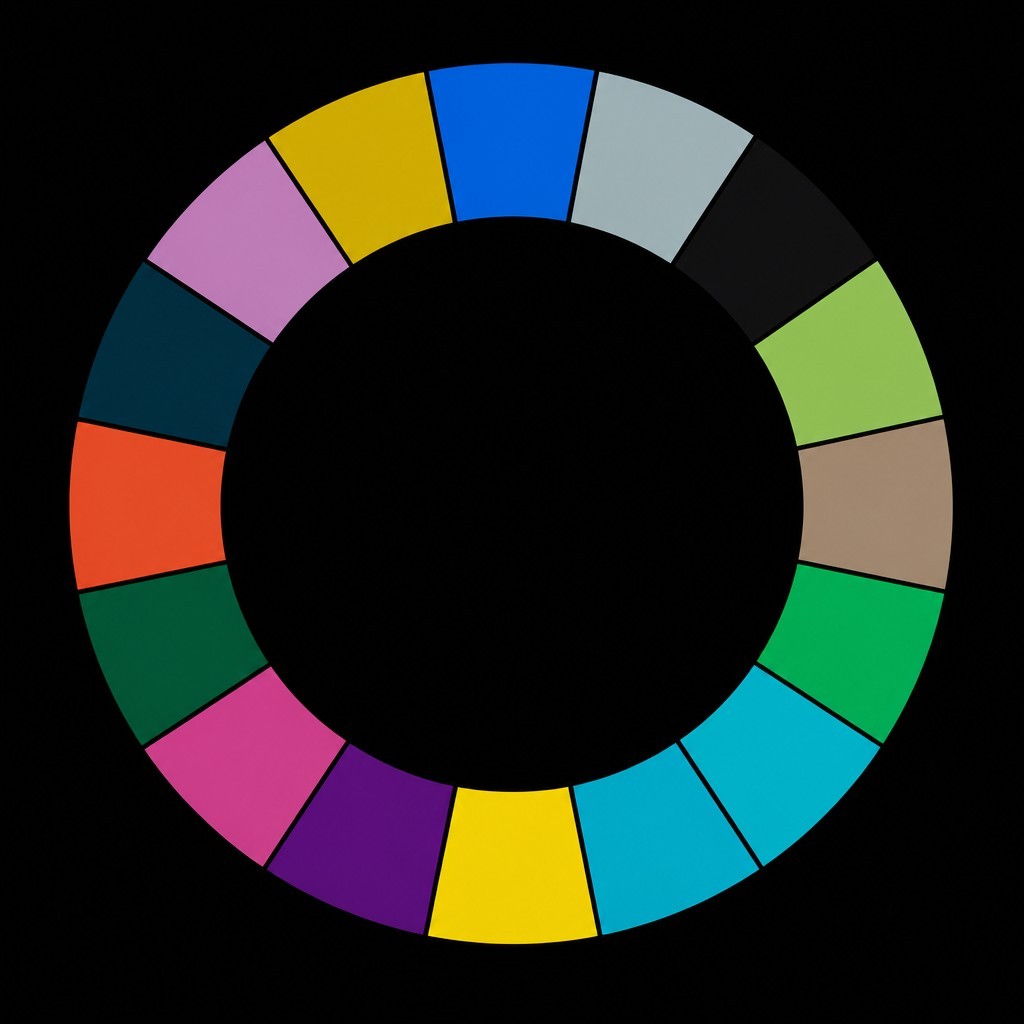

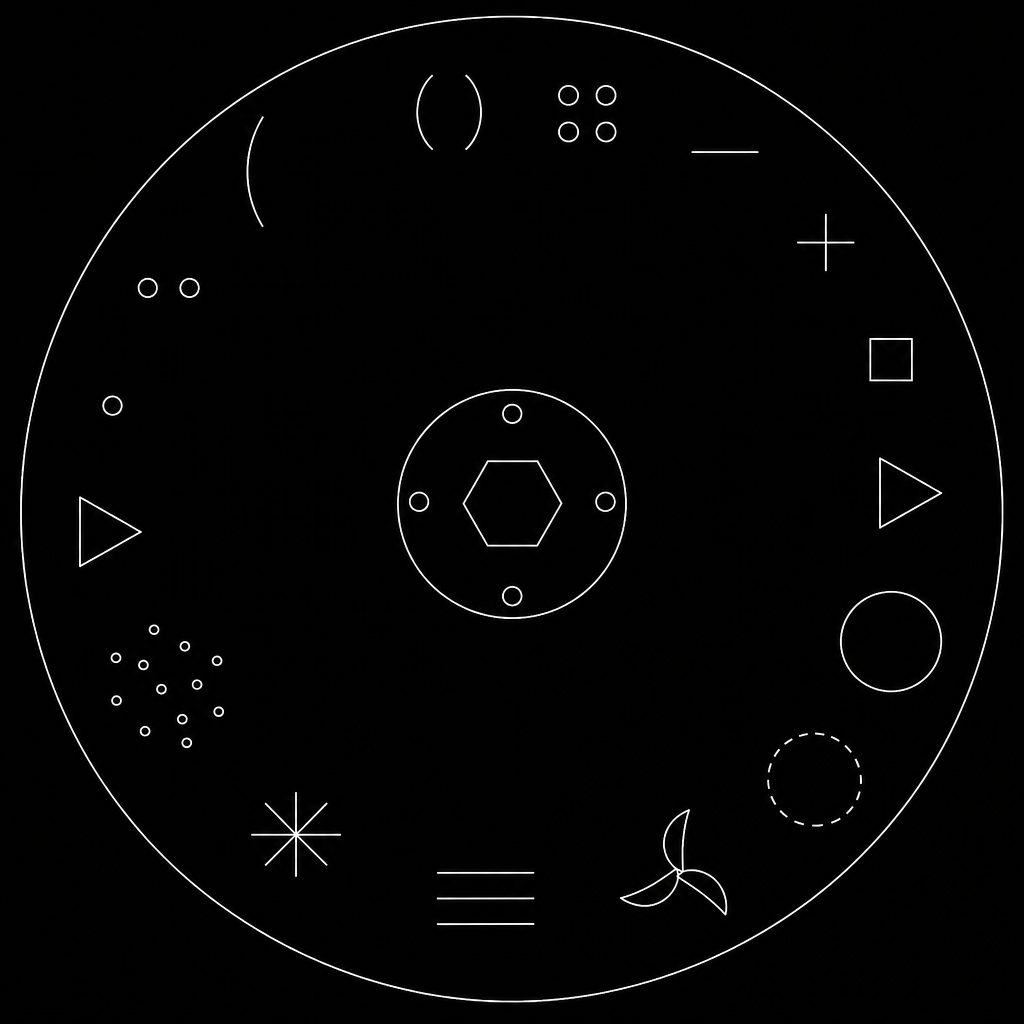

  • Rich effect arsenal — 13 colors + white, 8 gobos, 8/16-facet prism, frost, 0–100% linear dimmer and variable strobe give you endless looks from a single fixture
  • Flexible DMX control with multiple channel modes (16/20CH), compatible with standard lighting consoles and controllers
  • Compact & lightweight design — saves truss space, lowers shipping costs and simplifies transport between gigs
  • Low power consumption with stable, reliable performance for long continuous operation
  • Quiet cooling & rugged housing — built to survive daily rental use

Product Description

Mini Beam 230 Moving Head is a Small classical 7r  sharp.The Mini 230 Beam delivers professional-grade beam effects in a compact, lightweight body — the ideal choice for bars, KTVs, mobile DJs and touring acts where space and budget matter most.

Our all Beam Moving Head here:https://showtimelite.com/product-category/products/moving-head-light/

We support OEM & ODM services, and welcome small-batch customization. Available custom options include logo printing on lamp housings, logo display on screens, customized glass patterns, replacement of prisms, and logo printing on flight cases.

This is our Tiktok would show our produce,please follow us:https://www.tiktok.com/@showtimestagelight

This is our Ins,You also Can follow us ,we would update some new goods on that:https://www.instagram.com/mayshowtimestagelight?igsh=MXF0czNiOWRldTdraw%3D%3D

This is our Facebook,please follow us,we would update some new goods on that:https://www.facebook.com/profile.php?id=100092310344983

Show Time Stage Light

Allerno/Mini Beam 230 Moving Head

CH1:      Color WheelCH2:      StrobeCH3:      DimmerCH4:      Gobo Wheel
CH5:      Prism1  insertCH6:  Prism2 InsertCH7: Prism Wheel RotCH8:     Rainbow/Frost
CH9:     FocusCH10:   PanCH11:   Pan FineCH12:   Tilt
CH13:   Tilt FineCH14:   Marco FunctionCH15:  ResetCH16:  Lamp Control

Optic

  1. Light Source:Ushio 230W 7R Sharp Bulbs
  2. Lifetime:5000H
  3. Color Temperature:6500K
  4. Lens Diameter:125mm
  5. Beam Angle:1.5degree

Electrical And Control

  • 1. Control:DMX 512/RDM/Artnet
    2. DMX Channel:16Ch
    3. Input Voltage:AC100-240V/50-60Hz
    4.  Power Supply:400Watts

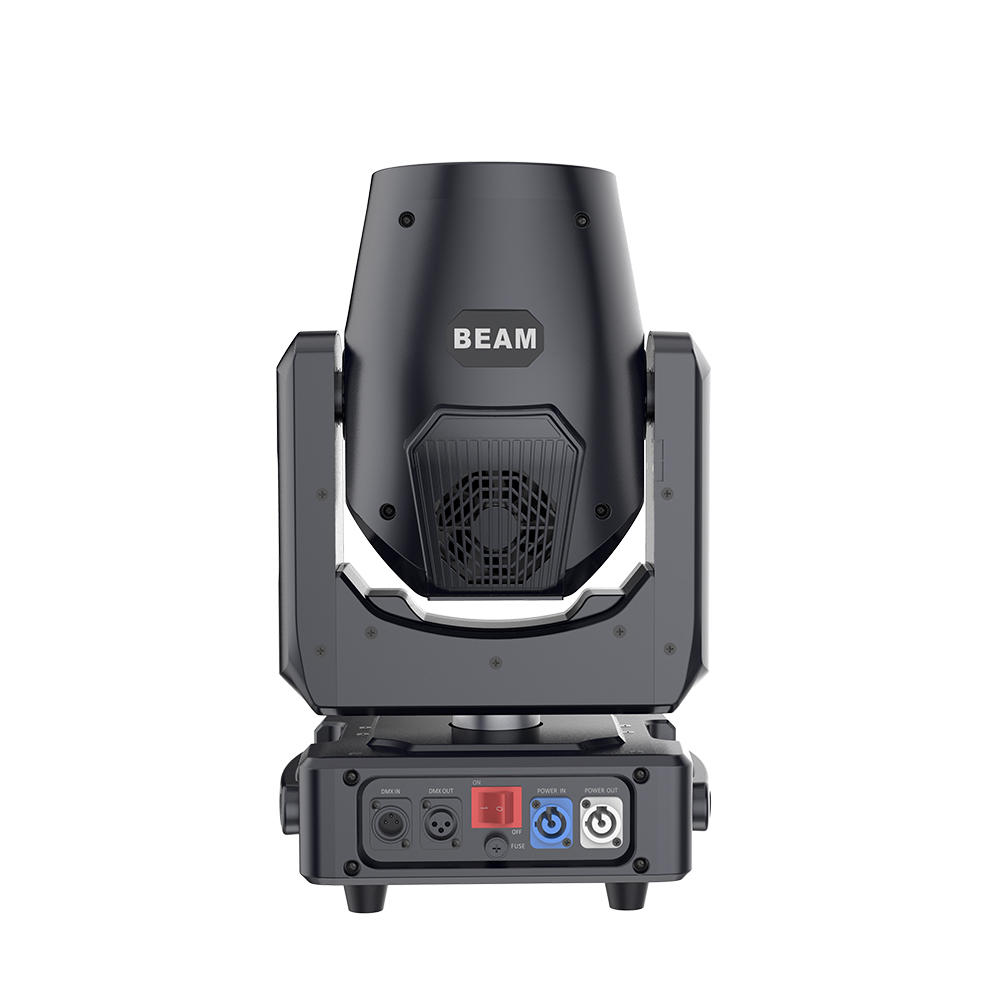

    5. Power Connections:Blue White Powercon In/out
    6. DMX Connections:3 Pin Xlr In/out

Dynamic Effect

  1. Dimmer:0-100% smooth dimming
  2. Strobe:0-30t/s
  3.  Focus:Electric Focus System
  4. Pan/Tilt:540/270degree
  5. P/T:16 Bit Scanning

Body and Package

  1. Flame retardant ABS material IP33 body

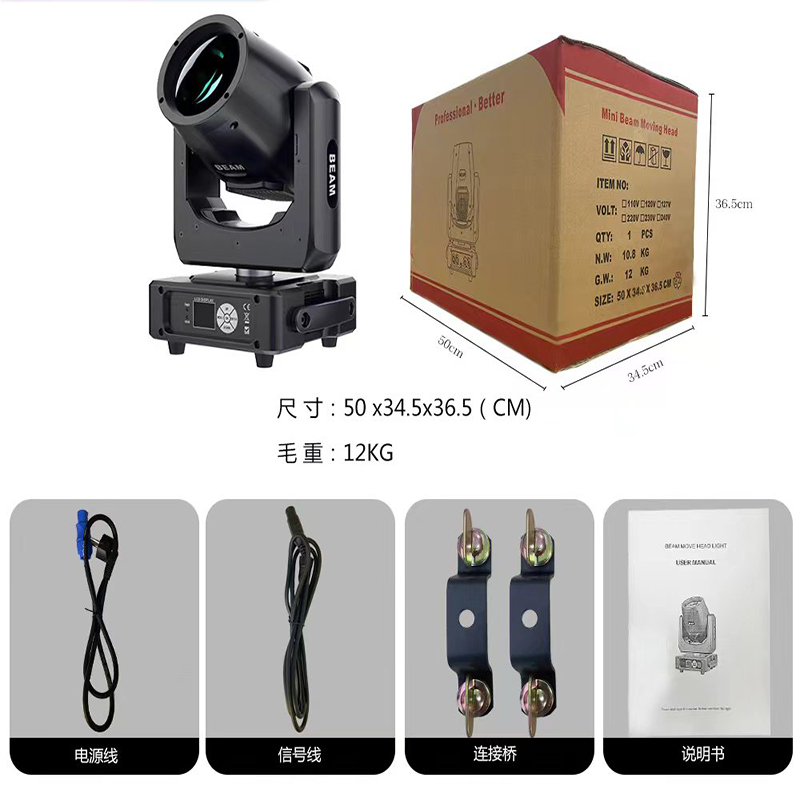

  2.  Carton Package:50*37*40cm 12kg
  3. 2 IN 1 Flycase Package:68*47*75cm 45kg

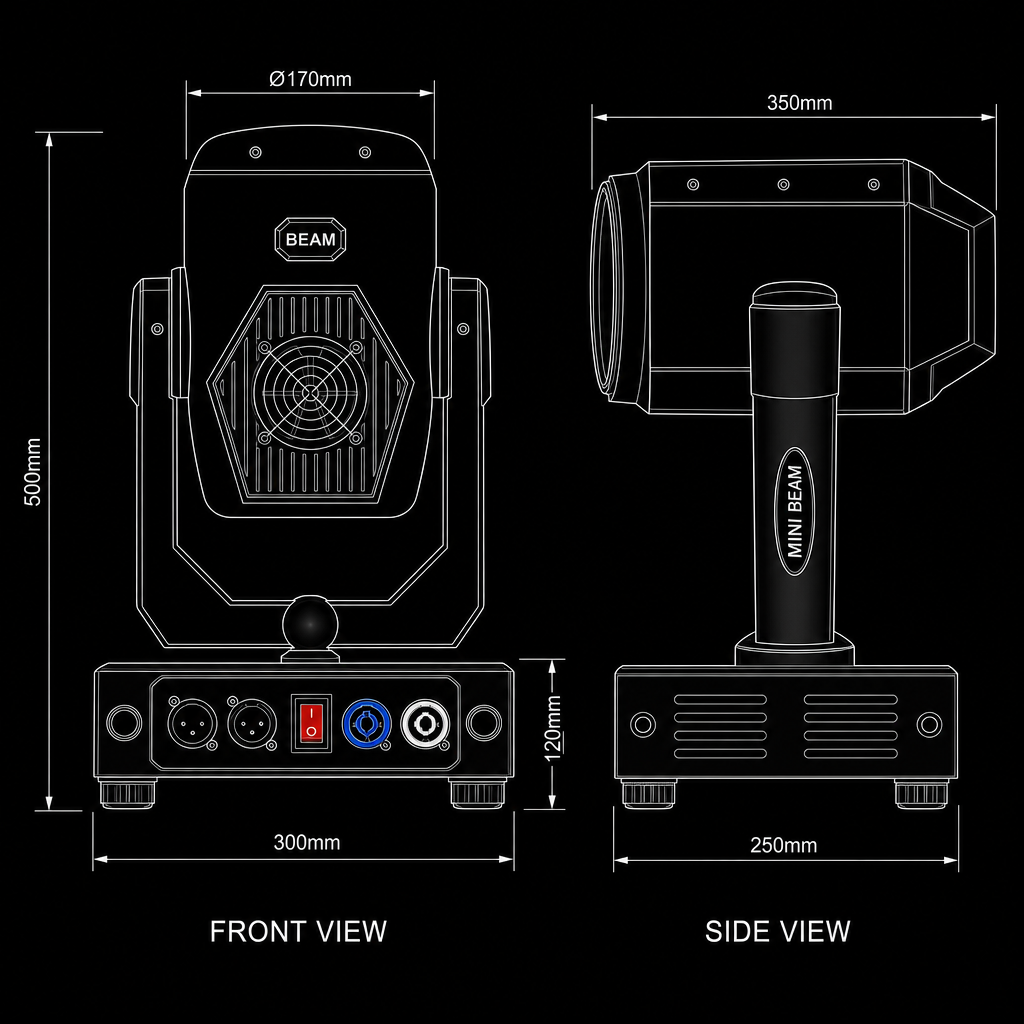

  4. Fixture Size:35*25*50cm 11kg

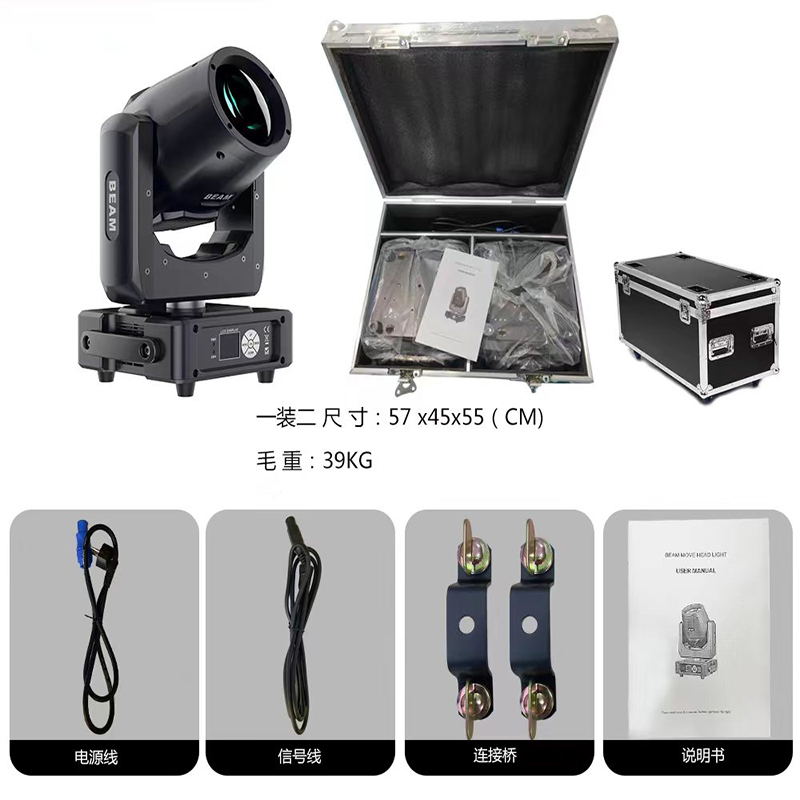

Package

Show Time Stage Light Mini Beam 230 Moving Head
Show Time Stage Light Mini Beam 230 Moving Head
Show Time Stage Light Mini Beam 230 Moving Head
Show Time Stage Light 380W Prism King Beam Moving Head
Show Time Stage Light Mini Beam 230 Moving Head
Show Time Stage Light Mini Beam 230 Moving Head
Show Time Stage Light Mini Beam 230 Moving Head
